Small type curing area uv led curing system

Model:HTLD-4II-FS2020-NH

The UV-LED curing system adopts the LED lighting method, and the LED with different wavelength of 365nm, 385nm, 395nm and 405nm wavelength can be used to cure different materials,such as UV glue, UV ink, UV varnish, UV paint.

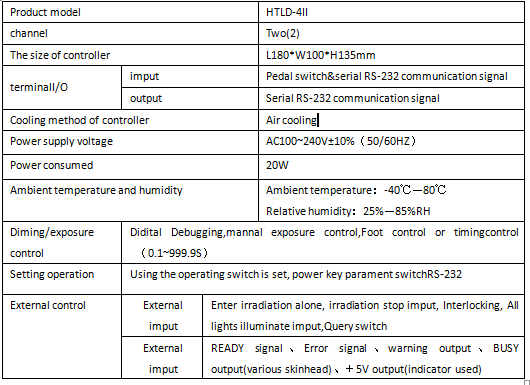

Product SurveySpecification ParameterProduct Dimension Drawing

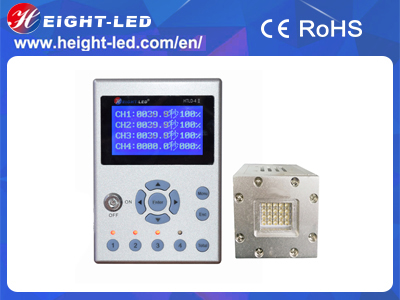

HTLD-4II-FS2020-NH is a high quality UVLED  curing system, the system includes the controller, UVLED irradiation head , controller and cable. UVLED head with imported high-intensity UV LED integrated UV spectral wavelength of 365nm, 385nm, 395nm, 405nm, the use of water cooling, the effective curing area of 20x20mm, support for external signal input and trigger,mainly used for the printing machine.
