uvled curing machine_uv led curing system 500*30mm

Model:HTCS-II-FS50030-NH-2

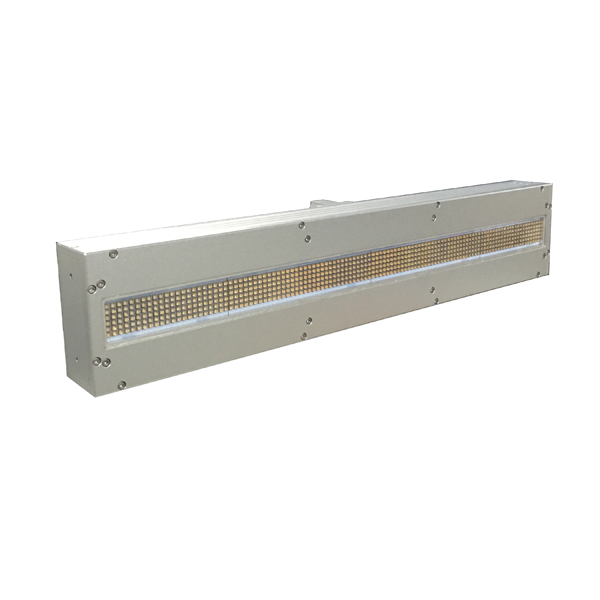

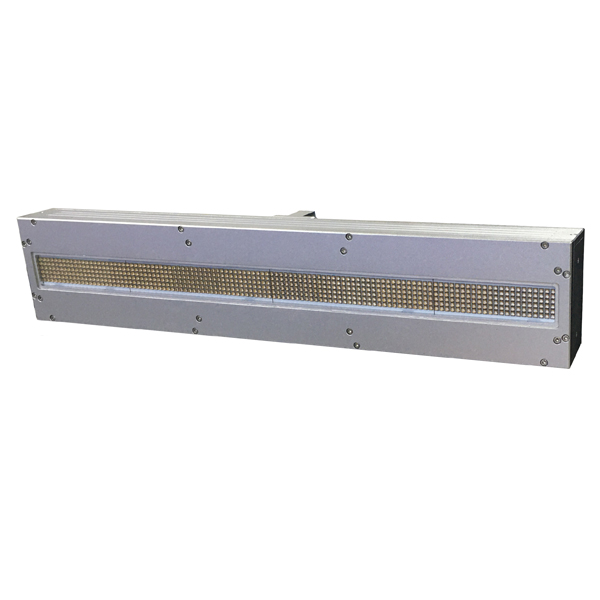

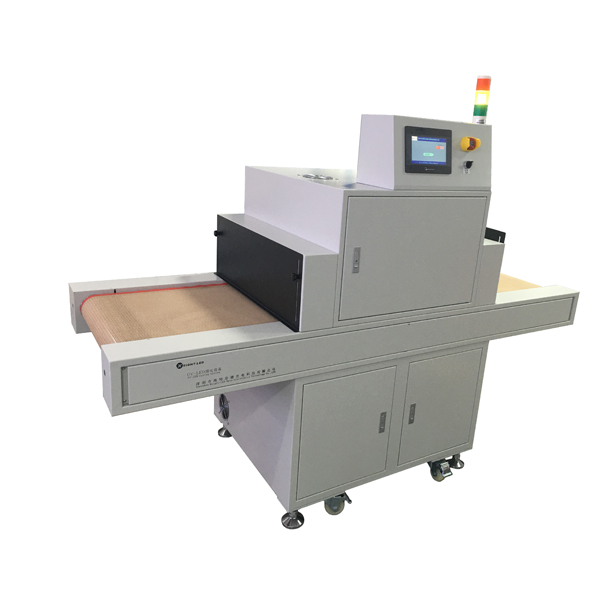

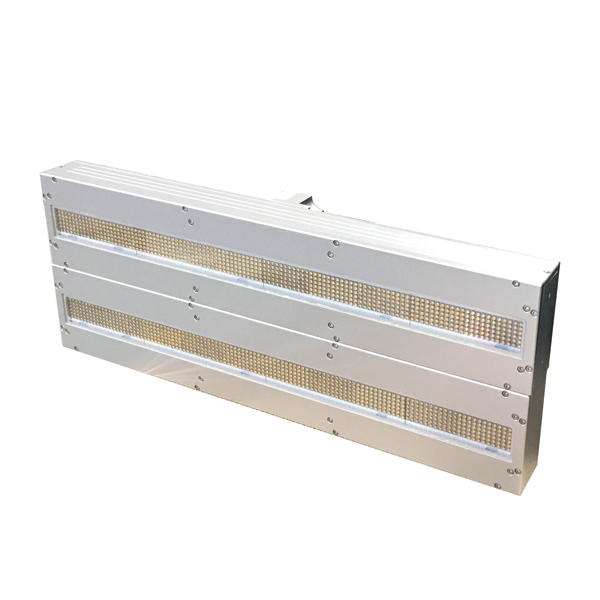

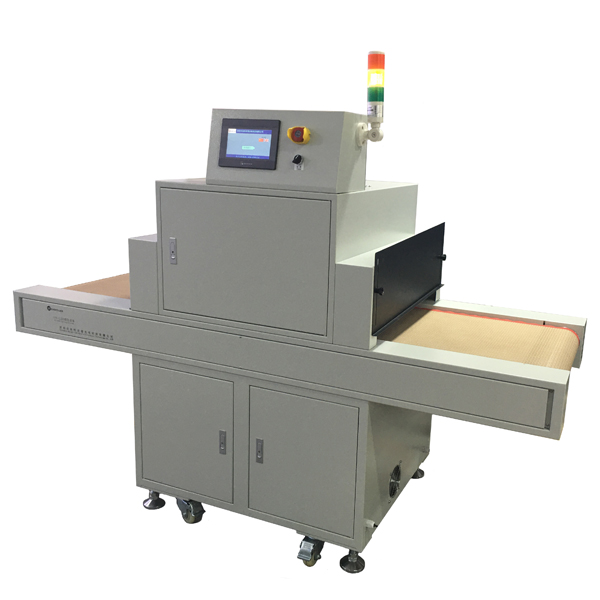

HTCC-2S660-500X30 UVLED curing machine is a high-performance UVLED surface light source curing system designed for UV adhesive curing. The system mainly includes a control system, conveyor belt and 2 UVLED irradiation heads. The UVLED irradiation head is integrated with imported high-intensity ultraviolet LEDs. The UV spectrum wavelength is 365nm / 395nm. The irradiation area of the curing light source is 500x30. It adopts forced water cooling and supports external signal input and triggering. It can be equipped with a semi-automatic or fully automatic production line.


Product SurveySpecification ParameterProduct Dimension Drawing

UVLED curing machine replaces traditional mercury lamps, built-in UVLED curing light source, low temperature, no ozone, no deep ultraviolet, low energy consumption, high efficiency, no infrared radiation, cold light source, suitable for the curing of various heat sensitive materials uv glue, infrared transmission Intelligent control, start and stop control as needed.

uvled curing machine.jpg

uvled curing machine.jpg

uvled curing machine.jpg
