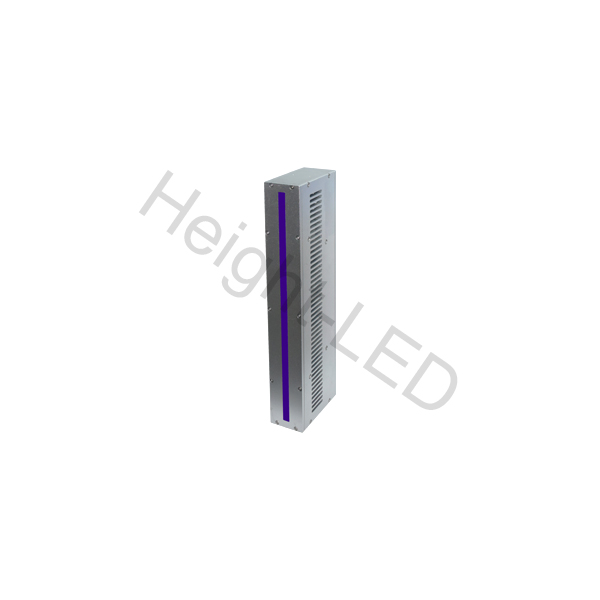

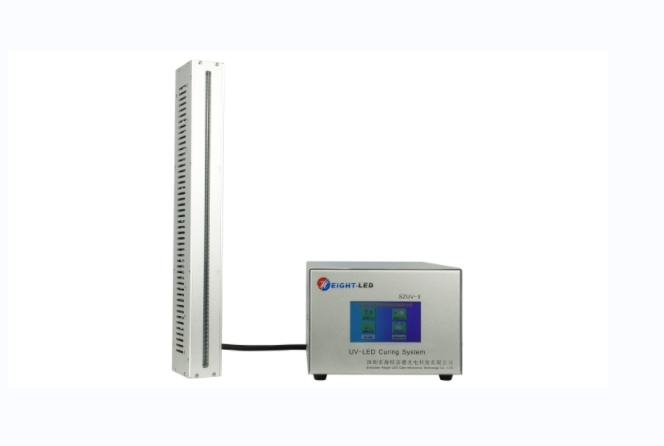

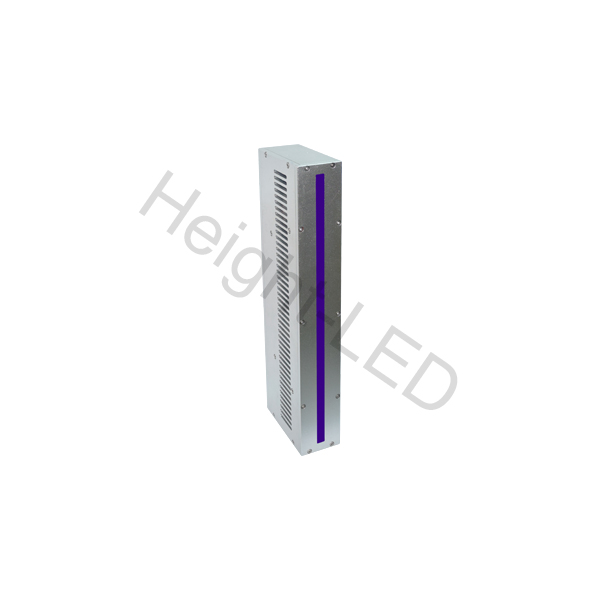

uvled linear curing system(330x10mm)

Model:SZUV-II-FS33010-BH

Irradiation area:330x10mm
Wavelength:365nm
Optical power density:2.3W/cm²
Heat Dissipation:Air-cooled


Product SurveySpecification ParameterProduct Dimension Drawing

  I. Equipment Characteristics

  1. Signal input

  The device supports external IO signal control, RS485 Modbus-RTU communication protocol, which allows remote operation of relevant parameters.

  2. Control mode

  The device provides automatic mode and manual mode for selection, in automatic mode, the device cures according to the irradiation time you set, and automatically turns off the UVLED after counting down, in manual mode, the device needs to manually turn on the UVLED and record the curing time in real time.

  3. Function

  The equipment is equipped with digital dimming, time-delayed shutdown of the cooling fan, history of irradiation time query and other functions.

  Second, the light source characteristics

  1. Energy efficient

  UVLED output band concentration, high photoelectric conversion rate, energy saving and power saving, fast curing speed, high productivity.

  2. Wide range of application

  UVLED is a cold light source, low infrared heat radiation, will not cause thermal stress and deformation, suitable for all kinds of heat-sensitive materials curing.

  3. Long life

  UVLEDs have a long service life, reducing the investment cost of equipment. It can be turned on and off without preheating, and the number of switching times does not affect the service life.

  4. Green

  Comply with RoHS, no mercury.
