Possible failures and causes of UVLED light curing machine

Click:[1221] Publish Time:2019-11-30

             It is well known that UVLED light curing technology is to use UVLED curing equipment that can emit pure ultraviolet light to irradiate the

coating or object to be cured to achieve curing and deep curing in a very short time, thereby improving production efficiency and quality. The

UVLED light curing machine emits pure ultraviolet light through the UVLED chip, and irradiates UV coatings such as UV glue and UV ink to achieve

a fast and good curing effect. UVLED light curing is a curing and drying method with a high degree of environmental protection on the market.

The curing speed is fast, and it is not harmful to the environment like mercury lamps.

       However, when we use UVLED light curing machine, we will encounter some problems. The reason may be improper operation, or it may be the

problem of the light curing machine accessories. Here, we compiled a few common problems and The solution for your reference.

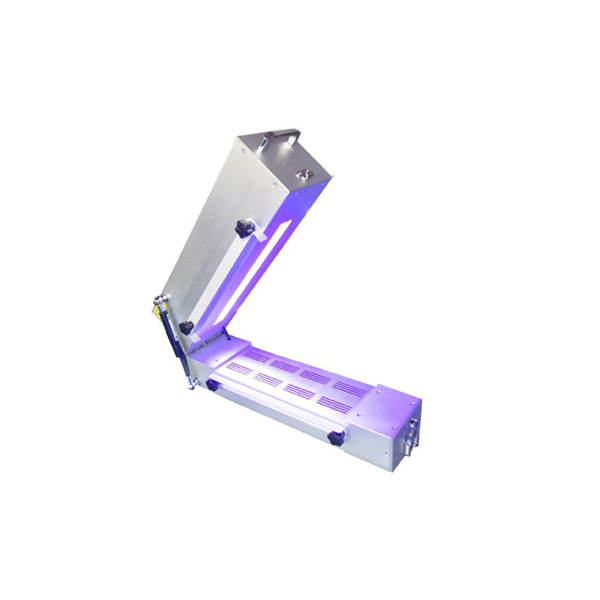

        uv led curing machine.jpg

     First, UVLED lamp beads do not light up or self-extinguish, the possible reasons for analysis are as follows:

1. Although the life of UVLED lamp beads is much longer than that of traditional mercury lamps, it will have a certain degree of attenuation with the

     use of time.Solution: need to replace the lamp beads appropriately.

2.The power supply voltage is too low.Solution: increase the voltage.

3.Insufficient air cooling.Solution: dredging the ventilation pipe and cleaning the debris.

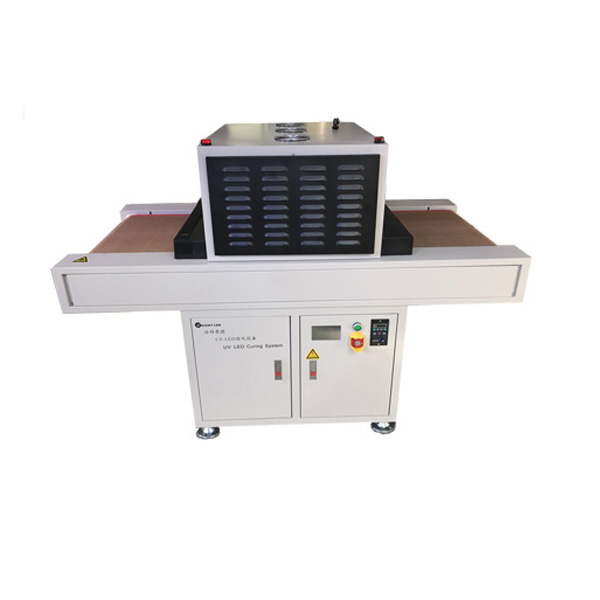

         uv led curing lamps.jpg

     Second, The temperature of the equipment is too high during use. The possible reasons are as follows:

1.Bad heat dissipation.Solution: Check if the fan is running normally, clean up the dust accumulated on the fan

2.The device has been in the high light intensity irradiation mode for a long time.Solution: In general, if long-term high light intensity irradiation

    is required, it is recommended to choose a water-cooled UVLED light curing machine, which has better heat dissipation effect.

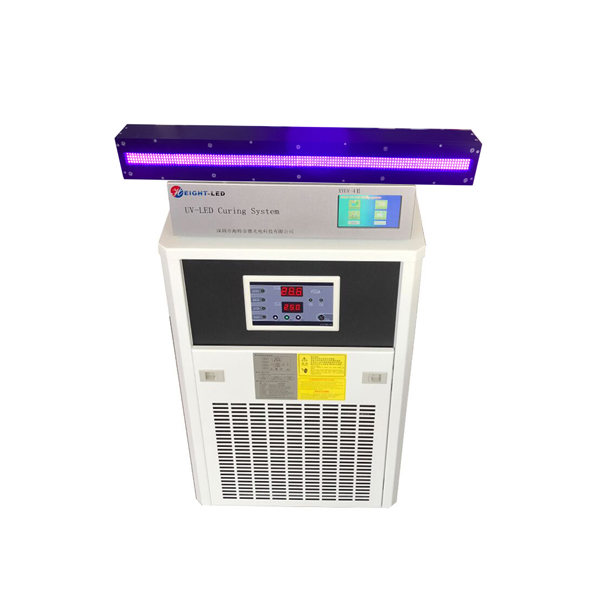

      uv led water cooling lamp.jpg
