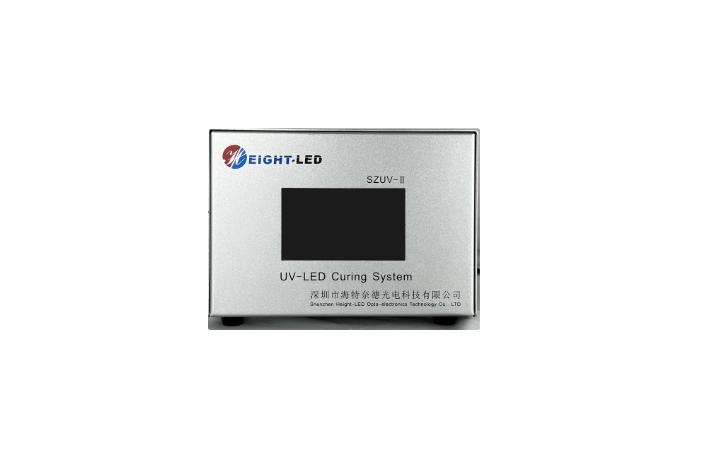

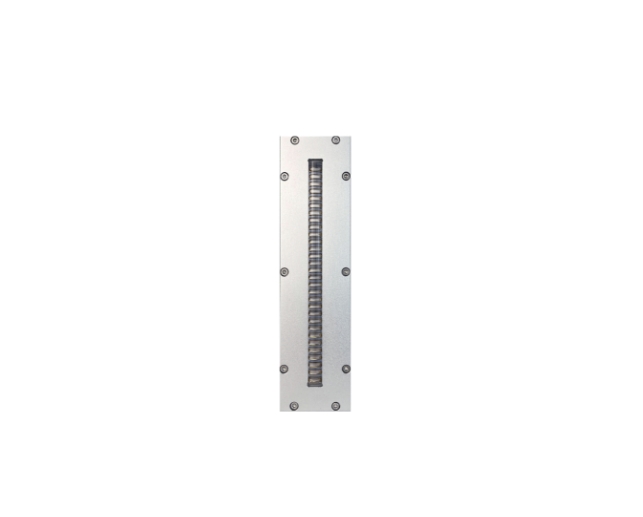

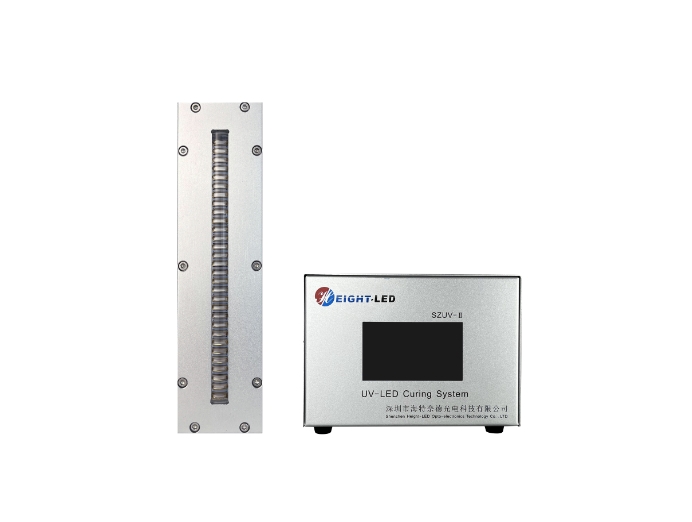

uvled linear curing system(165x10mm)


Specification: 165mmx10mm (luminous area)
Wavelength: 365/385/395/405 optional

Product SurveySpecification ParameterProduct Dimension Drawing

  I. Device features

  1. The device supports external IO signal control, RS485 Modbus-RTU communication protocol, you can operate the relevant parameters remotely.

  2. the device provides automatic mode and manual mode optional, automatic mode, the device according to your set irradiation time for curing, countdown automatically turn off the UVLED; manual mode, the device needs to manually turn on the UVLED, and real-time recording of curing time.

  3. The equipment has digital dimming, delayed shutdown of the cooling fan, record the total irradiation time and other functions.

  Second, the light source characteristics

  1. UVLED's output band is concentrated, high photoelectric conversion rate, energy saving and power saving, fast curing speed, high productivity.

  2. UVLED for cold light source, low infrared heat radiation, will not cause thermal stress and deformation, suitable for all kinds of heat-sensitive materials curing.

  3. UVLED long service life, reduce the investment cost of equipment. It can be turned on and off without preheating, and the number of switching times does not affect the service life.

  4. RoHS compliant, no mercury.
