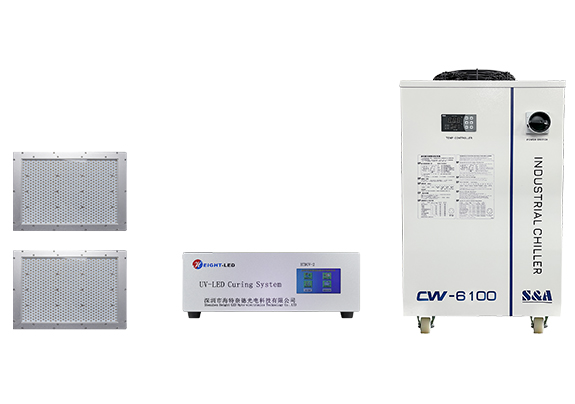

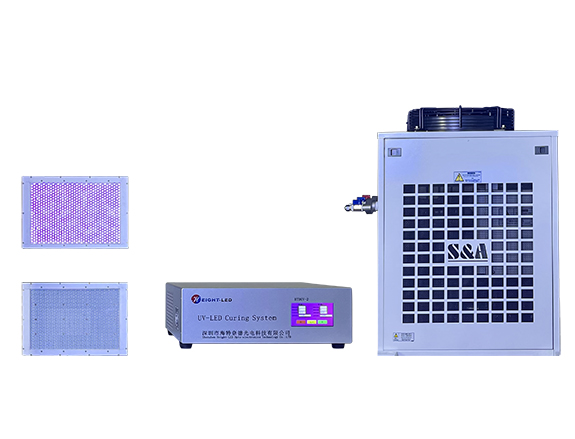

300*200mm uvled area curing system

Model:HTDUV-2-SS300200-NH-2

uvled surface light source Product Model:HTDUV-2-SS300200-NH-2 Light output area:300mm * 200mm * 2 Wave length:365nm


Product SurveySpecification ParameterProduct Dimension Drawing

  一、Equipment features

  1、the device supports external IO signal control, RS485 Modbus-RTU communication protocol, you can remotely operate the relevant parameters.

  2、the device provides automatic mode and manual mode optional, automatic mode, the device according to your set irradiation time for curing, automatically turn off the UVLED after the countdown; manual mode, the device needs to manually open the UVLED, and real-time recording of curing time.

  3、the device has digital dimming, delayed shutdown cooling fan, record the total irradiation time and other functions.

  二、the light source features

  1、Efficient and energy-saving

  UVLED output wavelength concentration, high photoelectric conversion rate, energy saving and power saving, fast curing speed, high production efficiency.

  2、wide range of applications

  UVLED is a cold light source, low infrared heat radiation, will not cause thermal stress and deformation of the work, suitable for curing of various types of heat-sensitive materials.

  3、Long life

  UVLED long service life, reduce the investment cost of equipment. Ready to turn on and off, no preheating, the number of switches does not affect the service life.

  4、Green environmental protection.

  Comply with RoHS, no mercury.
