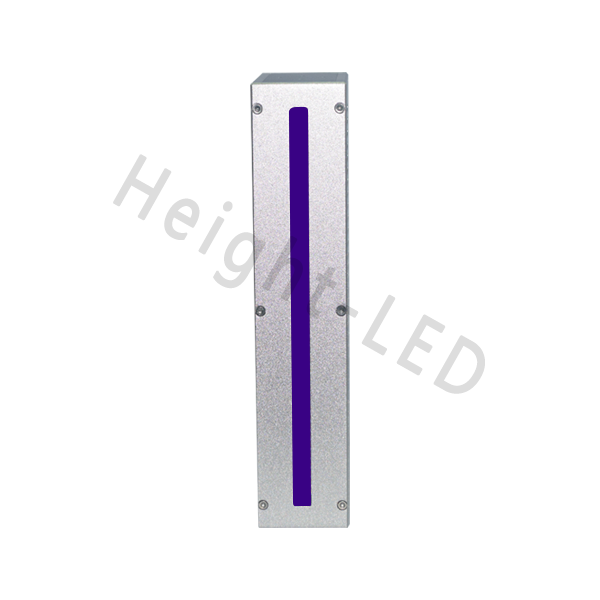

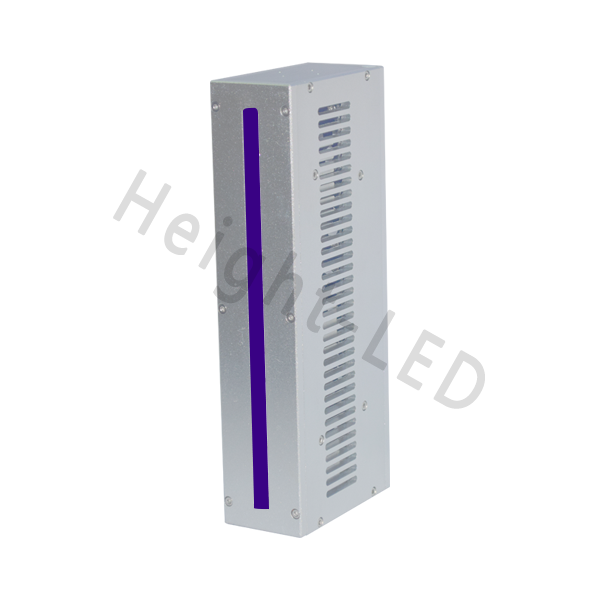

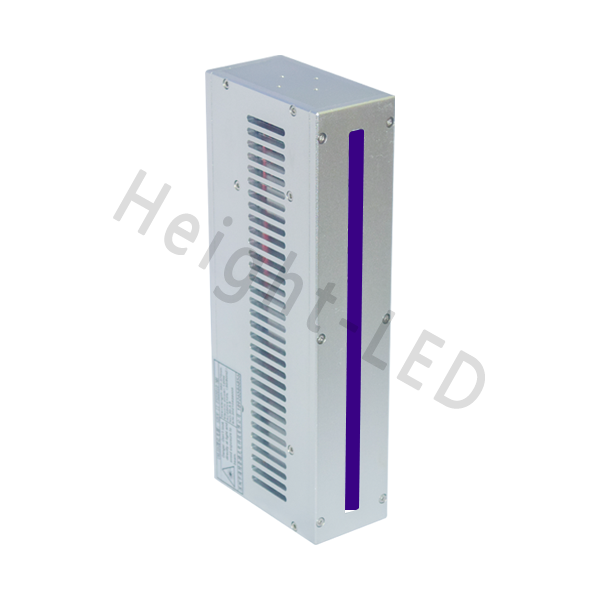

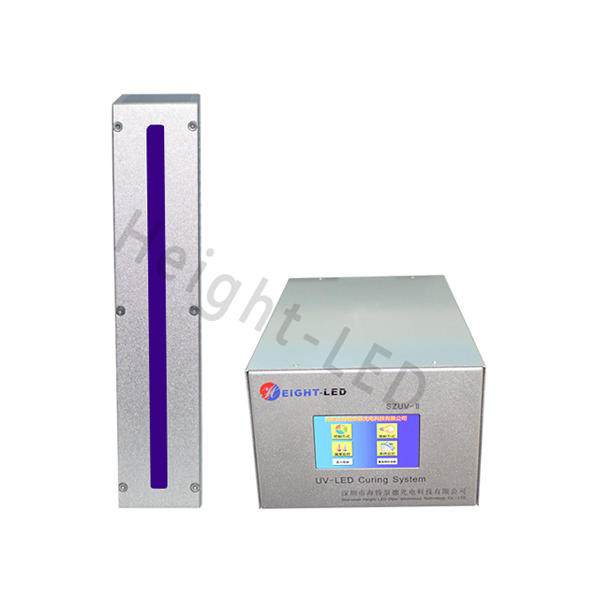

uvled linear curing system(220X10mm)


Irradiation area:220x10mm
Optical power density:2.3W/cm²
Heat Dissipation:Air-cooled

Product SurveySpecification ParameterProduct Dimension Drawing

  I. Equipment Characteristics

  1. Signal input:The device supports external IO signal control, RS485 Modbus-RTU communication protocol, which allows remote operation of relevant parameters.

  2. Control mode:The device provides automatic mode and manual mode for selection, in automatic mode, the device cures according to the irradiation time you set, and automatically turns off the UVLED after counting down, in manual mode, the device needs to manually turn on the UVLED and record the curing time in real time.

  3. Function:The equipment is equipped with digital dimming, time-delayed shutdown of the cooling fan, history of irradiation time query and other functions.

  Second, the light source characteristics

  1. Energy efficient:UVLED output band concentration, high photoelectric conversion rate, energy saving and power saving, fast curing speed, high productivity.

  2. Wide range of application:UVLED is a cold light source, low infrared heat radiation, will not cause thermal stress and deformation, suitable for all kinds of heat-sensitive materials curing.

  3. Long life:UVLEDs have a long service life, reducing the investment cost of equipment. It can be turned on and off without preheating, and the number of switching times does not affect the service life.

  4. Green:Comply with RoHS, no mercury.
