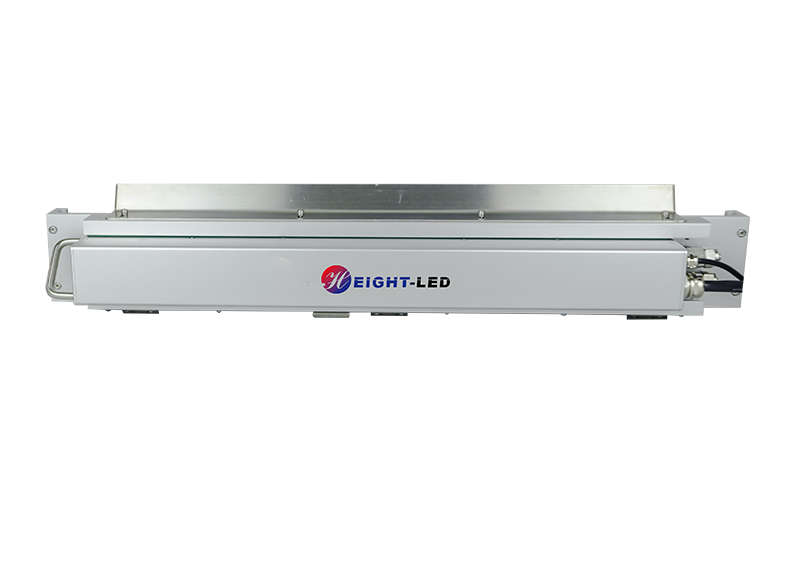

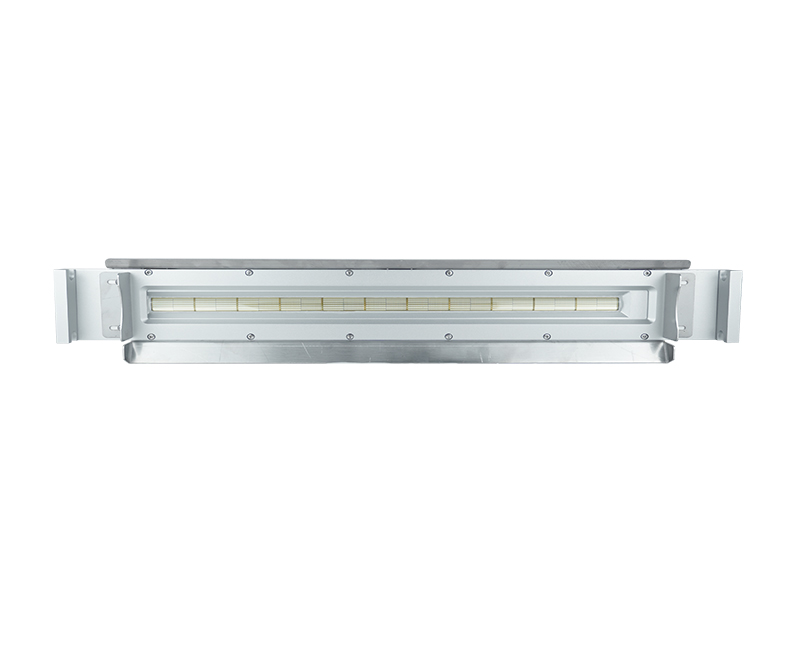

450mm*25mm*8 UVLED curing lamp


UVLED curing lamp Product Model:HTJP-II-SE45025-NH-8 Dimension:L1040mm*W800mm*H1780mm Wavelength:385nm Curing area:450mm * 25mm

Product SurveySpecification ParameterProduct Dimension Drawing

  I.Equipment features

  1,the equipment supports the light source current,voltage,temperature real-time monitoring function,when the light source is abnormal,UVLED curing lamp equipment alarm prompt,and automatically shut down the UVLED.

  2,the equipment supports external IO signal control,associated with the speed signal of the printing machine,light power with the speed of the printing machine automatically adjust.

  3,UVLED curing lamp equipment supports water cooler remote control,digital dimming,historical alarm information,irradiation time query and other functions.

  4,the equipment supports manual mode and automatic mode,manual mode:stand-alone debugging mode,do not need to be associated with the printing machine running signal independent operation,automatic mode:need to be associated with the printing machine signal,equipment and printing machine synchronous operation.

  II.Light source features

  1,green environmental protection

  UVLED curing lamp is RoHS compliant and does not contain mercury.

  2,long life

  UVLED has a long service life,reducing the investment cost of equipment.Ready to turn on and off,no preheating,UVLED curing lamp switch times do not affect the service life.

  3、High efficiency and energy saving

  UVLED output wavelength concentration,high photoelectric conversion rate,energy saving and power saving,fast curing speed,high production efficiency.

  4,wide range of applications

  UVLED is a cold light source,low infrared heat radiation,will not cause thermal stress and deformation of the work,suitable for curing of various types of heat-sensitive materials.
