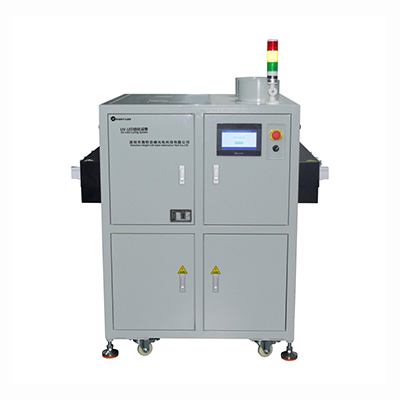

UV LED Curing Machine(250*200mm)

Model:HTCC-II-FS250200-NL-4

uv light curing machine model: HTCC-II-FS250200-NL-4
Light output area: 250mm * 200mm * 4
Wavelength: 365nm


Product SurveySpecification ParameterProduct Dimension Drawing

I. Equipment features

1. the equipment supports UVLED voltage real-time monitoring, UVLED fault alarm function and energy-saving protection function.

2. equipment to provide online mode and stand-alone mode optional, online mode, the machine through the SMEMA communication mode, with the upper and lower computer material docking and curing, stand-alone mode, click the start button, UV machine conveyor belt and UVLED has been working (UVLED can be shielded), click the stop button, the conveyor belt and the UVLED stop working.

3. the device has a digital dimming, delay off fan heat fan, history of irradiation time query and other functions.

Second, the light source characteristics

1. high efficiency and energy saving

UVLED output band concentration, high photoelectric conversion rate, energy saving, fast curing speed, high productivity.

2、Wide range of application

UVLED is a cold light source, low infrared heat radiation, will not cause thermal stress and deformation, suitable for all kinds of heat-sensitive materials curing.

3、Long life

UVLED long life, reduce the investment cost of equipment. That is on and off, no need to warm up, the number of switches does not affect the service life.

4、Green

Comply with RoHS, does not contain mercury.
