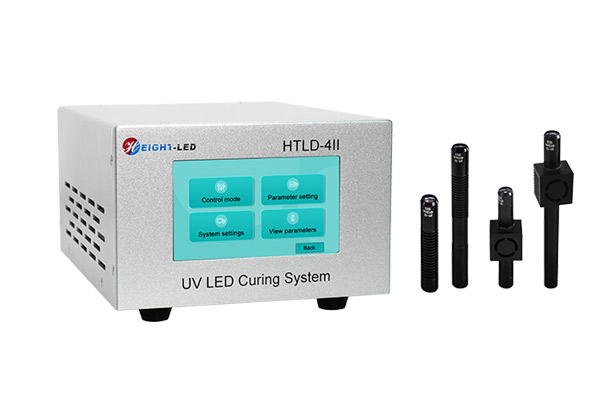

Model:HTLD-4II-N
Device Features
1. Supports external IO signal control and standard Modbus-RTU communication protocol for remote parameter reading/writing and light switching.
2. Supports independent and synchronous control modes:
• Independent Mode: Each of the four channels operates separately without interference.
• Synchronous Mode: All four channels start and stop simultaneously.
3. Provides three operation modes:
a. Fixed-Auto Mode: The device cures according to the preset exposure time and automatically shuts down after countdown.
b. Fixed-Manual Mode: Manually start curing via touch screen switch or external IO control; records exposure duration after shutdown.
c. Stepped Mode: Supports up to 20 exposure steps with a maximum of 255 cycles. Each step's time and power can be set independently:
• When time is set to 0, the system skips to the next step immediately.
• When power is set to 0 and time ≥1, the light turns off and delays for the set time before proceeding to the next step.
4. Features: Digital dimming (0-100%), exposure history query, and alarm functions for abnormalities.
Light Source Characteristics
✓ High Efficiency & Energy Saving
UVLED's concentrated output spectrum and high electro-optical conversion rate ensure energy efficiency, fast curing, and improved productivity.
✓ Wide Applicability
As a cold light source with minimal infrared heat radiation, UVLED prevents thermal stress and deformation, making it suitable for curing heat-sensitive materials.
✓ Extended Lifespan
Long service life reduces equipment costs. Instant on/off operation eliminates warm-up time, and switching frequency does not affect longevity.
✓ Environmentally Friendly
RoHS compliant and mercury-free.
