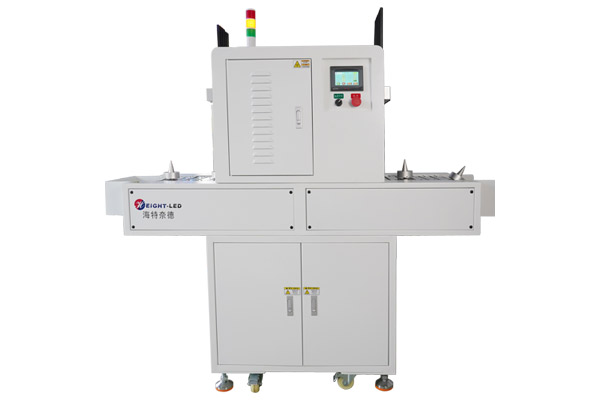

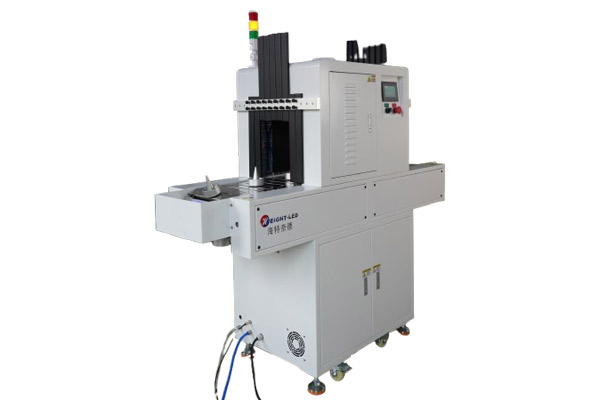

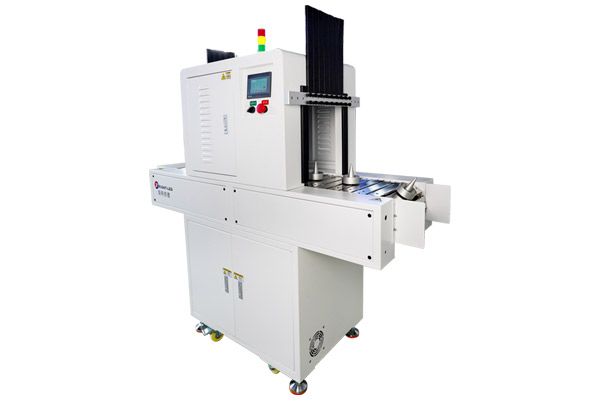

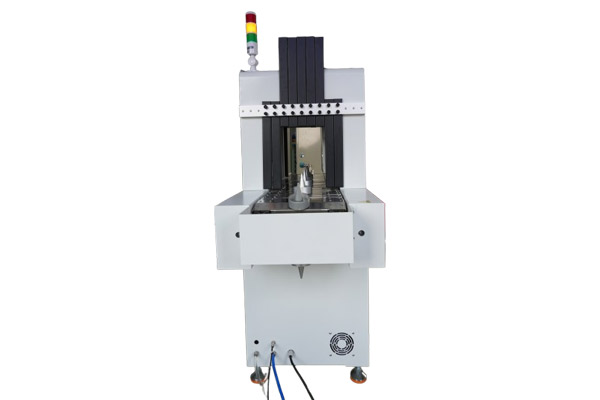

Model：HTCS-II-SN30030-NH-2
Specification
Main Model
HTCS-II

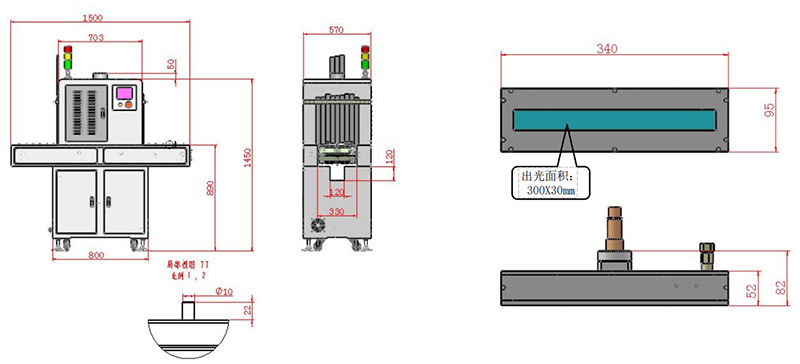

UV machine external dimensions
L1750mm*W570mm*H1530mm
Lighting area
300mm*30mm*2
Wavelength
395nm
Optical power density
12W/cm²
Lamp bead brand
Seoul, Korea
Lamp Bead Life
≥20000H
Heat Dissipation
water cooling
Control mode
PLC+HNI
Parameter setting
Touch screen operation
Power Adjustment
Digital dimming （1-100%）
Speed Setting
0-10m/min
Power supply voltage
AC220V (50HZ)
Power consumption
≤3.5KW
Net weight
200KG
Ambient temperature and humidity
Ambient temperature: -20℃-40℃ Relative humidity: 25%-80%RH
Warranty time
1year
