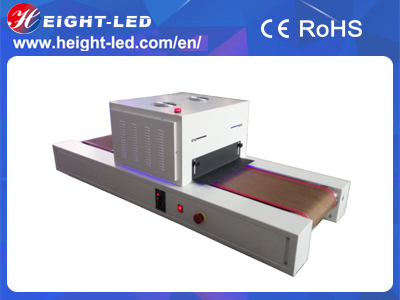

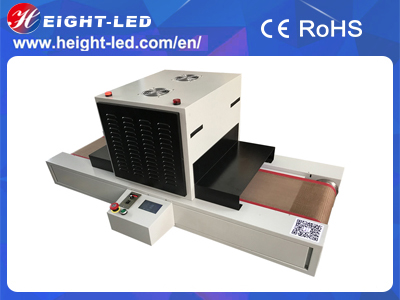

HTCD-II-FS300200-NL is a high-performance UVLED curing system, the system includes the controller,
UVLED irradiation head and cable. UVLED head with imported high-intensity UV LED integrated UV spectral wavelength
of 365nm, 385nm, 395nm, 405nm, the use of forced air cooling, the effective curing area of 300X200mm, support for
external signal input and trigger, can be equipped with semi-automatic or fully automated production line .
1, luminous body (effective irradiation width): can be customized;
2, UV LED lights from the conveyor belt adjustable distance: 10-50mm;
3, UV LED lamp power density: 1300mW / cm²;
4, UV light intensity adjustable: 1% -100%;
5, Reflector: Aluminum reflector built-in imported reflective aluminum, high reflection efficiency, long service life;
6, the conveyor belt width: 300mm;
7, conveyor belt material: Teflon mesh belt or stainless steel mesh for optional;
8, Conveyor speed: 1-10 meters Promise adjustable;
9, LED lamp beads that is bright, without preheating, immediately begin curing work;
10, roller: surface knurling, to ensure smooth delivery;
11, the whole cooling method: air-cooled;
12, machine material: sheet metal;
13, machine appearance: white spray computer
14, the whole specification: 1500L * 580W * 230Hmm;
15, power wiring: 220VAC 50HZ;
16,wavelength:365nm/385nm/395nm/405nm optional.
