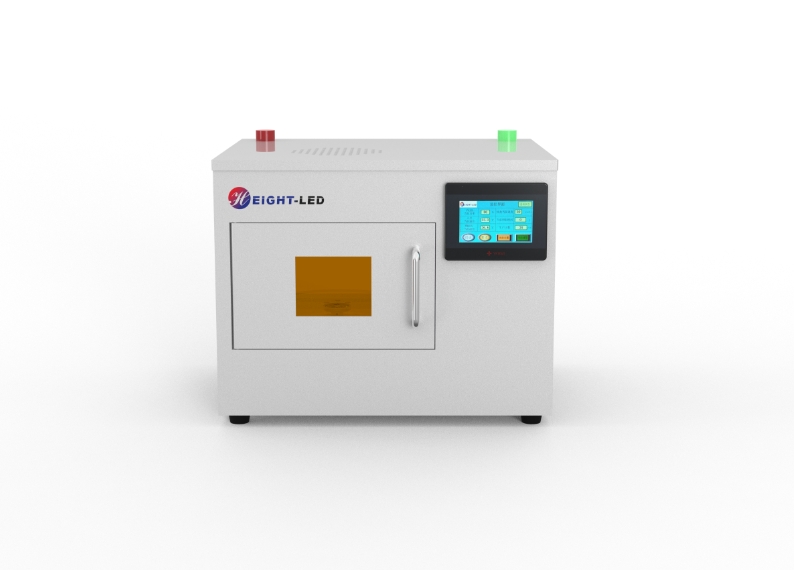

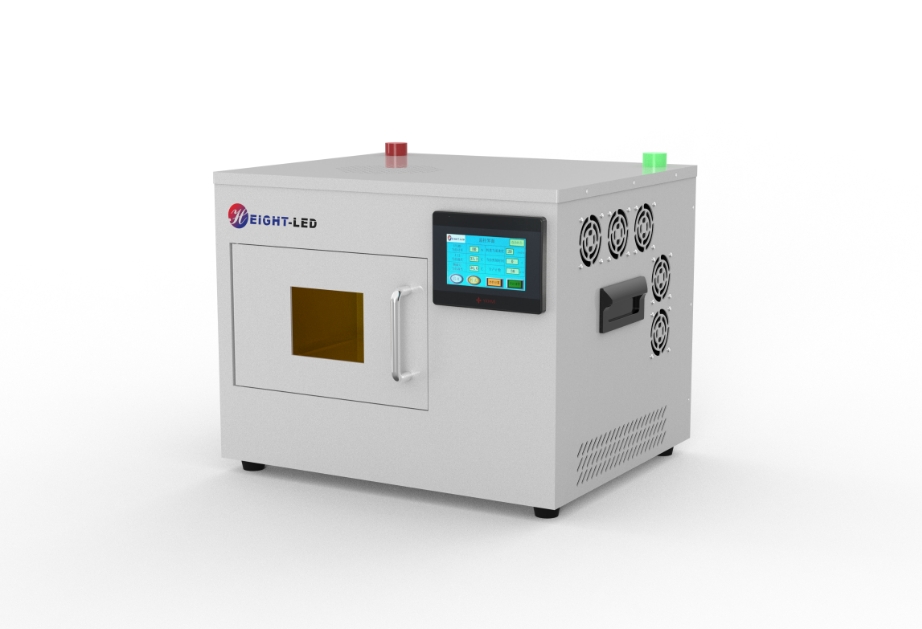

UVLED Rotary Oven

Model:HTBX-II-FS200200-BL-2

The UV LED rotary oven light position machine area for the top 200mmx200mm, back 150mmx100mm, wavelength 365/385/395/405 optional


Product SurveySpecification ParameterProduct Dimension Drawing

  I. Equipment features

  1. equipment with a diameter of 210mm rotating tray, support for two sides of the dead-angle-free curing.

  2. Intelligent safety door protection function, any mode of opening the door immediately shut down the UVLED; and has a top, back two light sources, support for independent control. 3.

  3. the device provides automatic mode and manual mode optional, automatic mode, the device according to your set irradiation time for curing, countdown is completed automatically turn off the UVLED; manual mode, the device needs to manually turn on the UVLED, and real-time recording of curing time.

  4. equipment with digital dimming, production counting, historical data query and other functions.

  Second, the light source characteristics

  1. Energy efficient

  UVLED output band concentration, high photoelectric conversion rate, energy saving and power saving, fast curing speed, high production efficiency.

  2. Wide range of application

  UVLED is a cold light source, low infrared heat radiation, will not cause thermal stress and deformation, suitable for all kinds of heat-sensitive materials curing.

  3. Long life

  UVLEDs have a long service life, reducing the investment cost of equipment. It can be turned on and off without preheating, and the number of switching times does not affect the service life.

  4. Green

  Comply with RoHS, no mercury.
