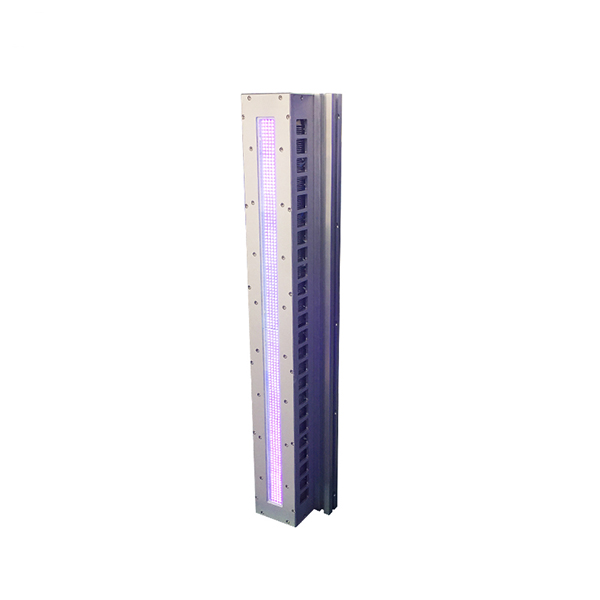

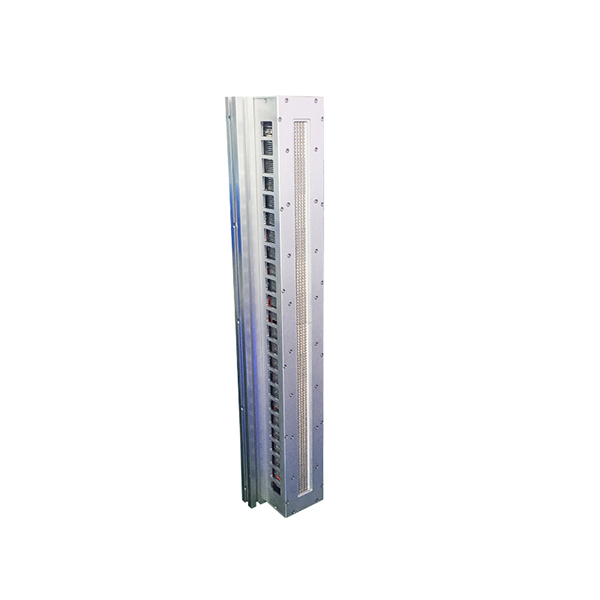

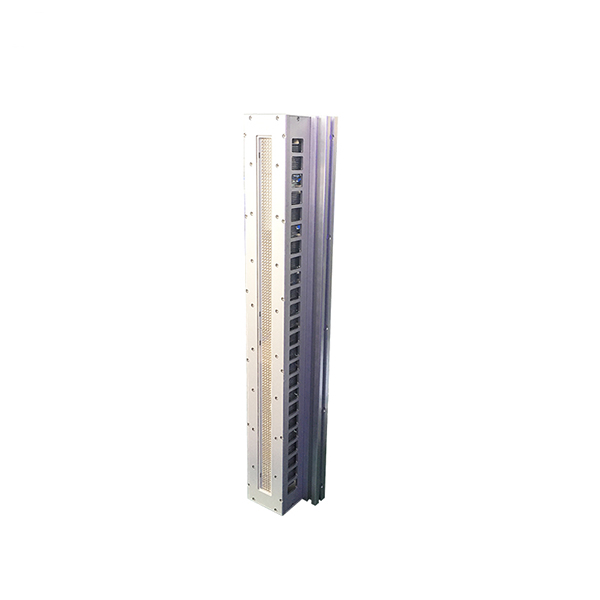

uvled lamp_uvled light source 600x20mm

Model:XYUV-4II-FS60020-NH

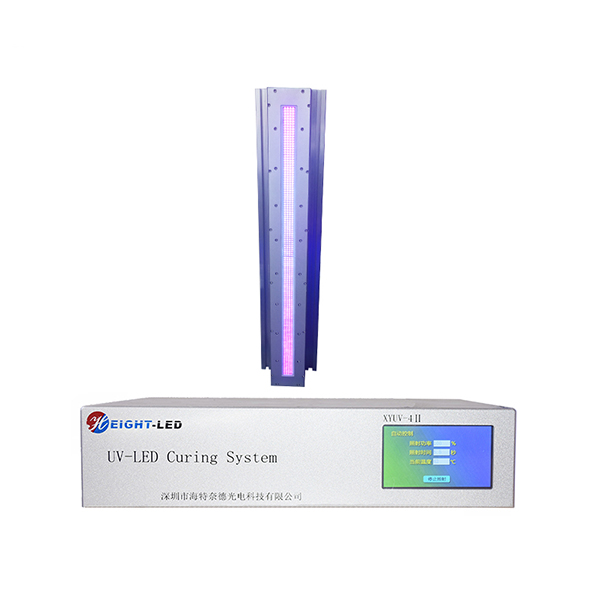

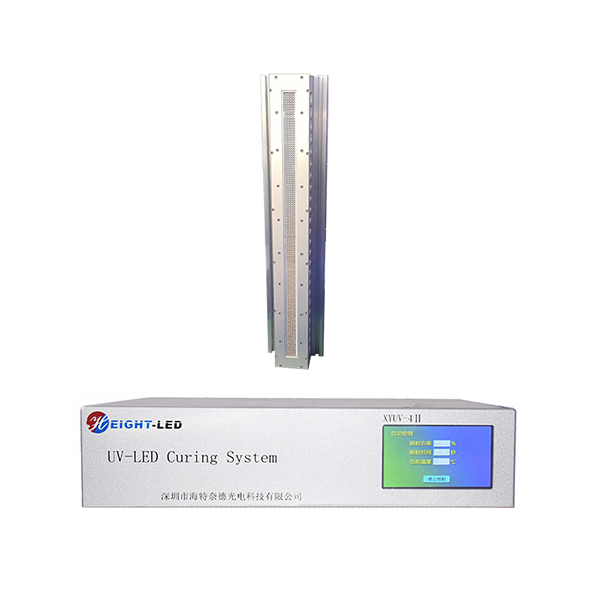

This is a high-performance leduv surface light source curing system, which mainly includes a controller, UVLED irradiation head and connecting wires. The UVLED irradiation head is integrated with imported high-intensity ultraviolet LEDs. The UV spectrum wavelength is 365nm, and it uses forced air cooling. The effective curing area is 600X20mm. It supports external signal input and triggering. It can be equipped with semi-automatic or fully automatic production lines.


Product SurveySpecification ParameterProduct Dimension Drawing

Characteristics of uvled surface light source curing equipment:


.No infrared radiation, cold light source, suitable for curing various heat sensitive materials.


.No need to prewarm,it can be used immediately after turning on,reaching the maximum light

 intensity instantly and the power can be adjusted.


.Long life, not affected by switching times.


.Power saving, simple operation and convenient maintenance.


.No mercury, no ozone, green and environmentally friendly.
