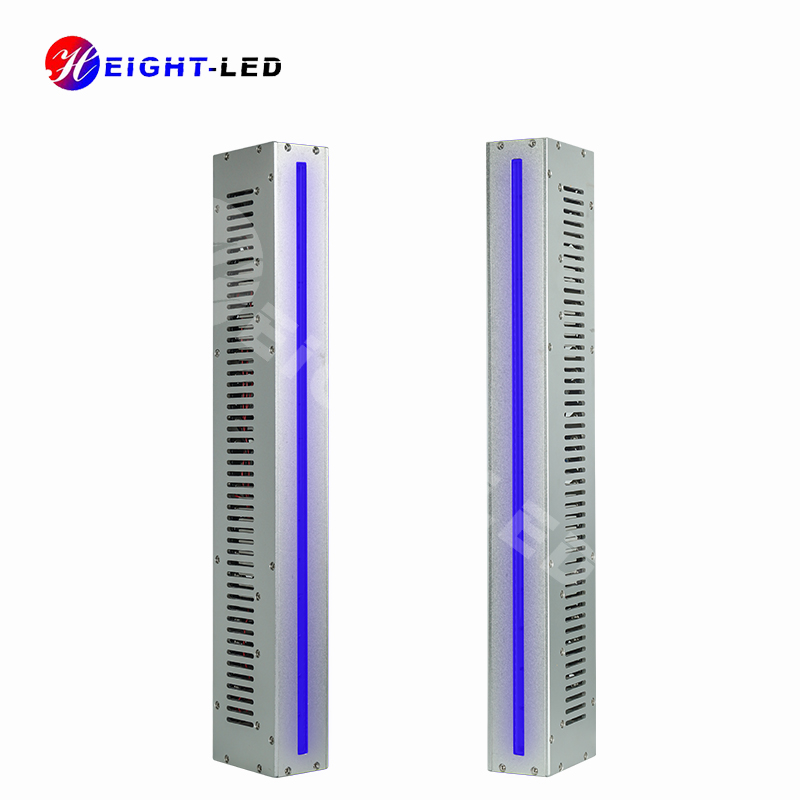

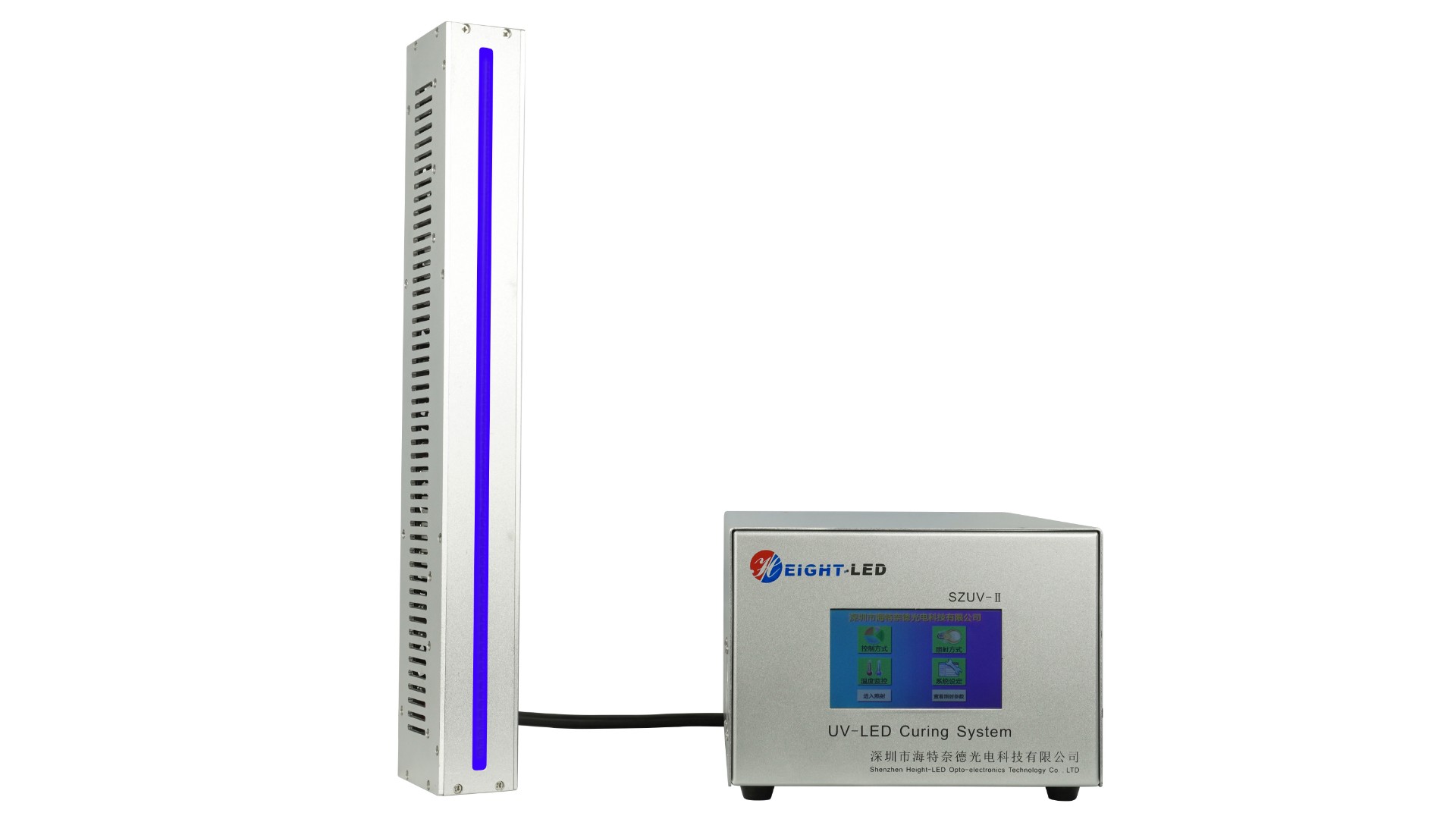

uvled linear curing system(400*10mm)


UVLED linear curing system Light area: 400 * 10mm
Wavelength: 365nm
Heat dissipation mode: air-cooled

Product SurveySpecification ParameterProduct Dimension Drawing

  First, the characteristics of the equipment

  1. uvled linear curing system supports external IO signal control, RS485 Modbus-RTU communication protocol, you can operate the relevant parameters remotely.

  2. uvled linear curing system provides automatic mode and manual mode optional, automatic mode, the device according to your set irradiation time for curing, countdown automatically turn off the UVLED. manual mode, uvled linear curing system need to manually turn on the UVLED and real-time recording of the curing time.

  3. equipment with digital dimming, delay off the cooling fan, record the total exposure time and other functions.

  Second, the light source characteristics

  1. Energy efficient

  UVLED output band concentration, uv line light source photoelectric conversion rate is high, energy saving, fast curing speed, high productivity.

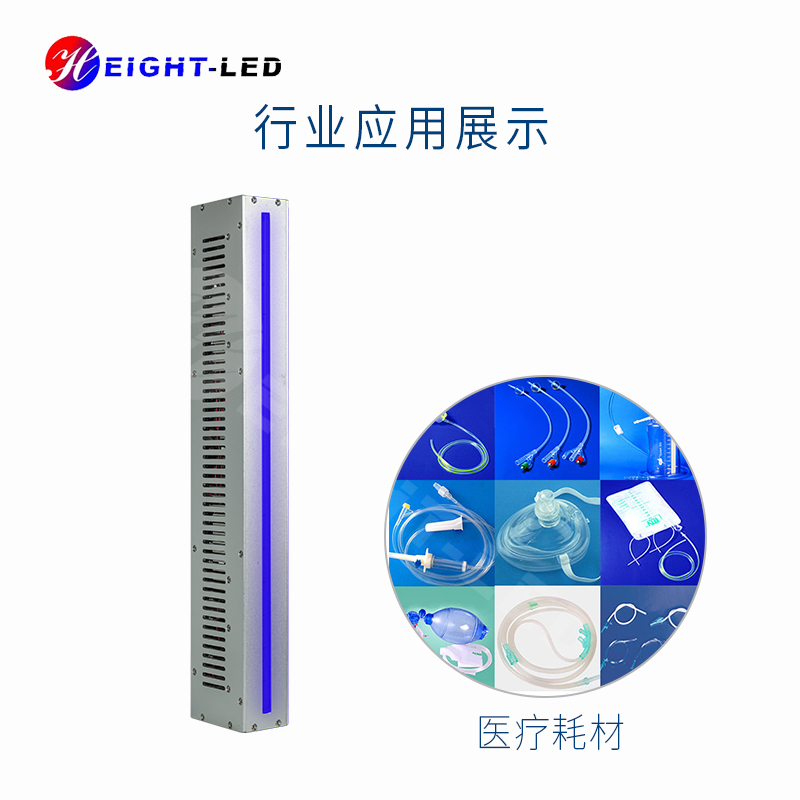

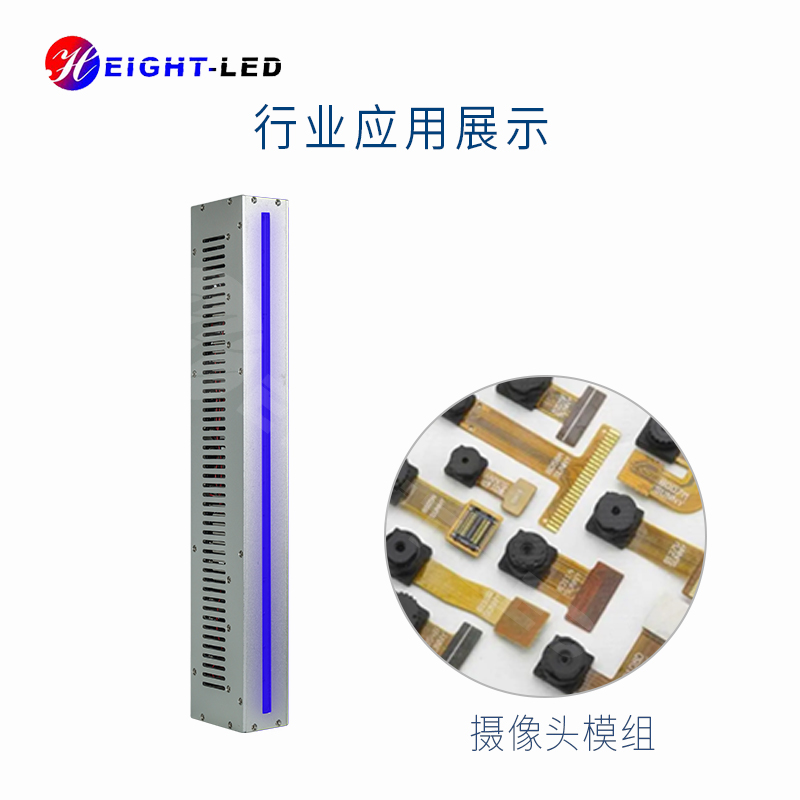

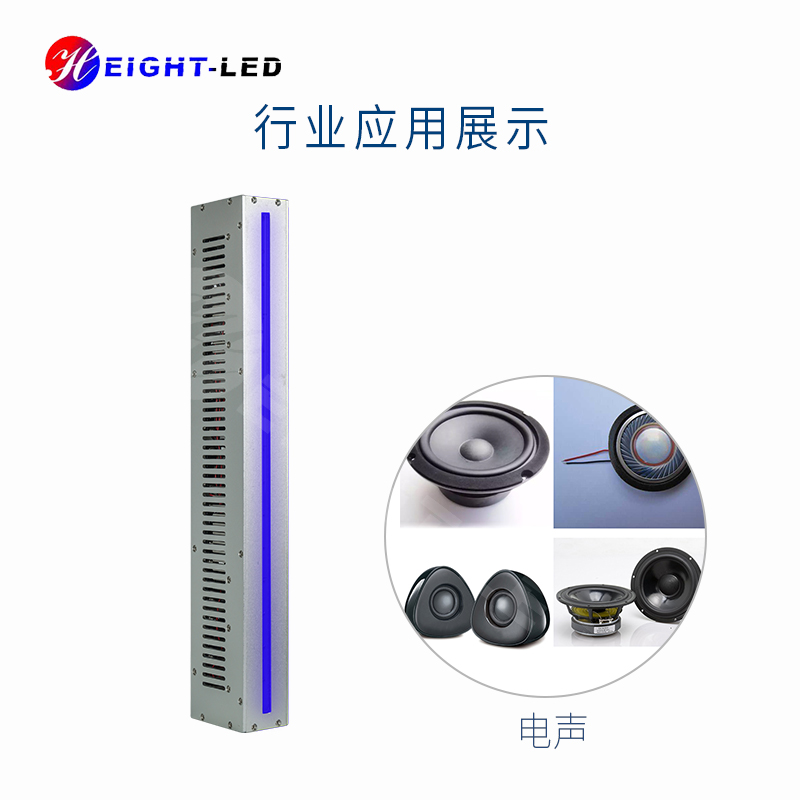

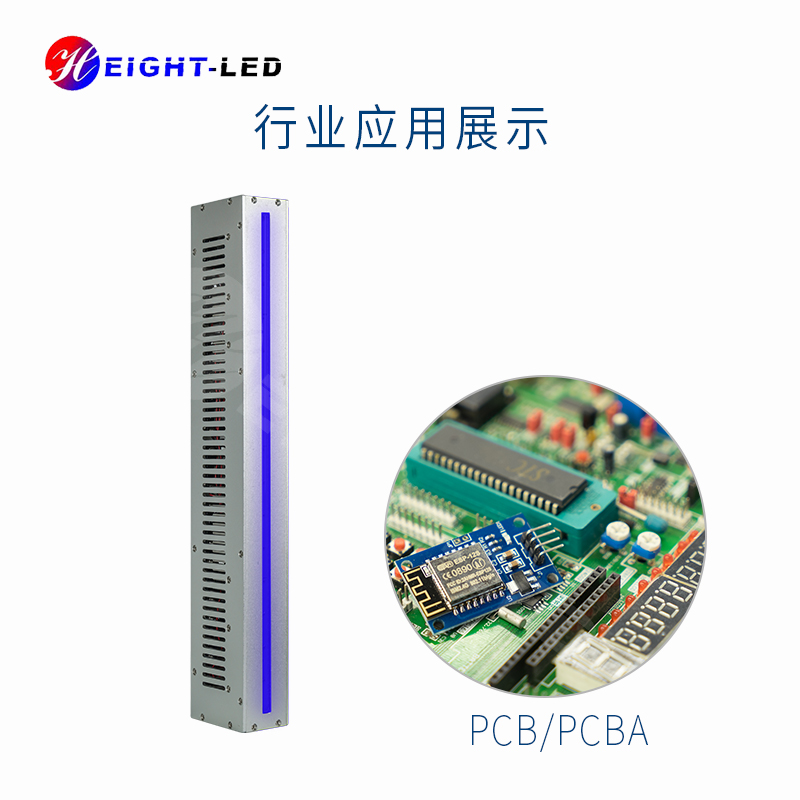

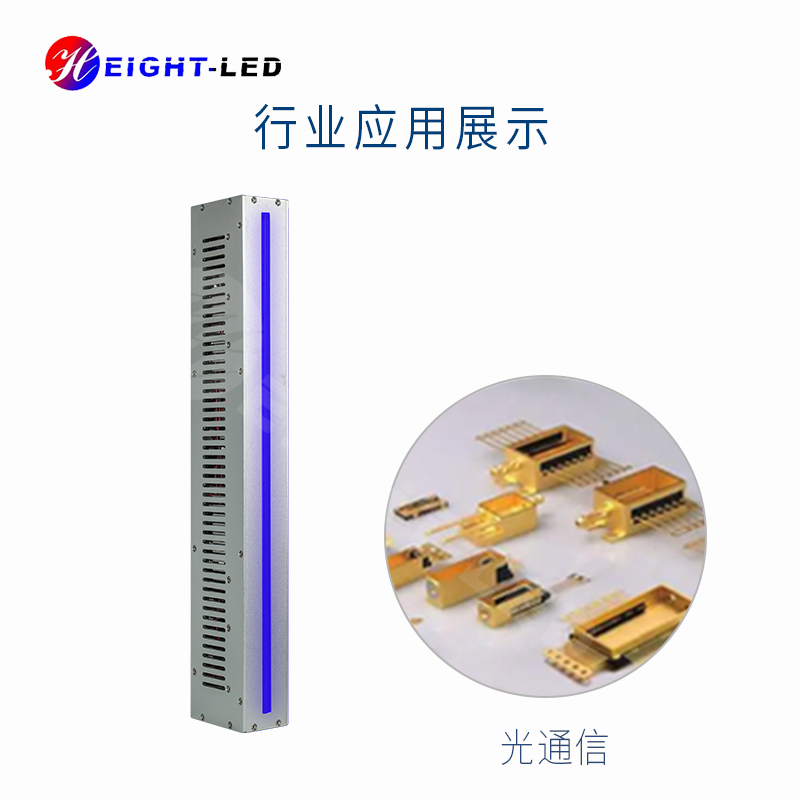

  2. Wide range of applications

  UVLED is a cold light source, low infrared heat radiation, will not cause thermal stress and deformation, suitable for all kinds of heat-sensitive materials curing.

  3. Long life

  UVLEDs have a long service life, reducing the investment cost of equipment. It can be turned on and off without preheating, and the number of switching times does not affect the service life.

  4. Green

  UVLED line light source is RoHS compliant and does not contain mercury.
