UVLED spot curing system irradiation head


Hitech Ned specializes in UV LED point curing system, uvled curing point light source, different uvled point light source parameters can be customized, welcome to contact us!

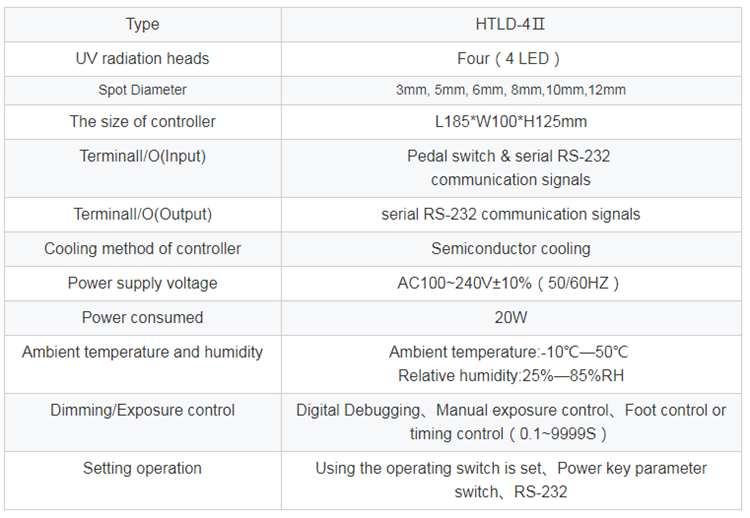

Product SurveySpecification ParameterProduct Dimension Drawing

1.HTLD-4II is a high performance UV LED spot curing system.

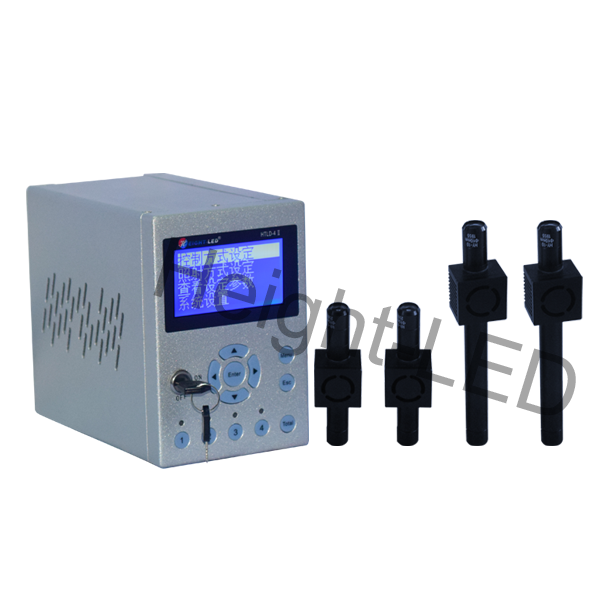

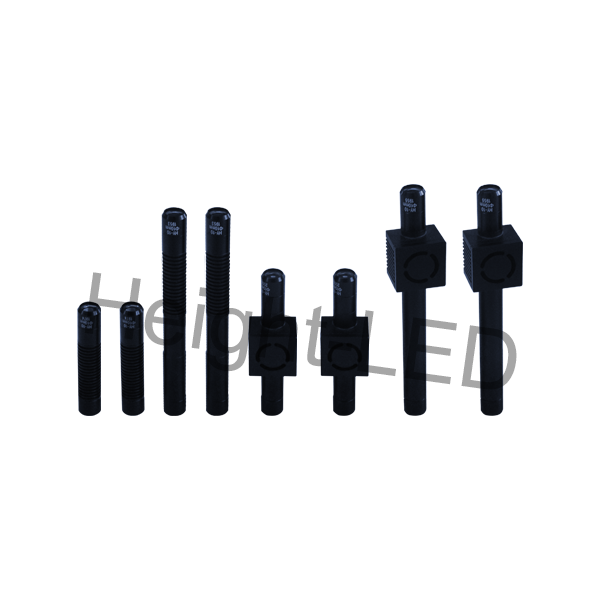

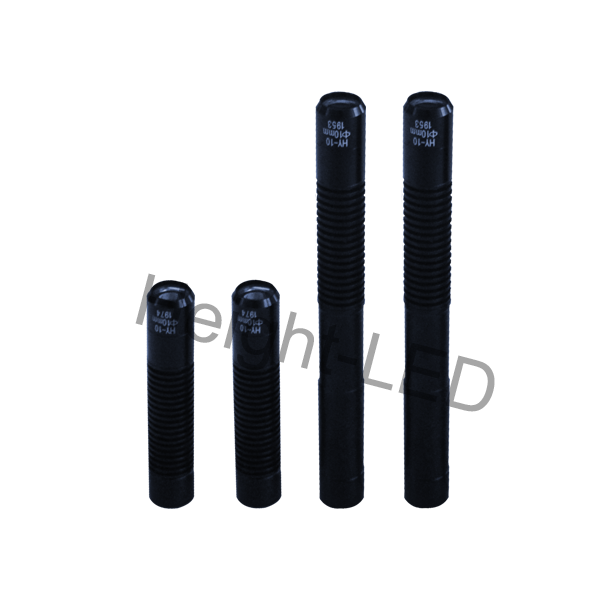

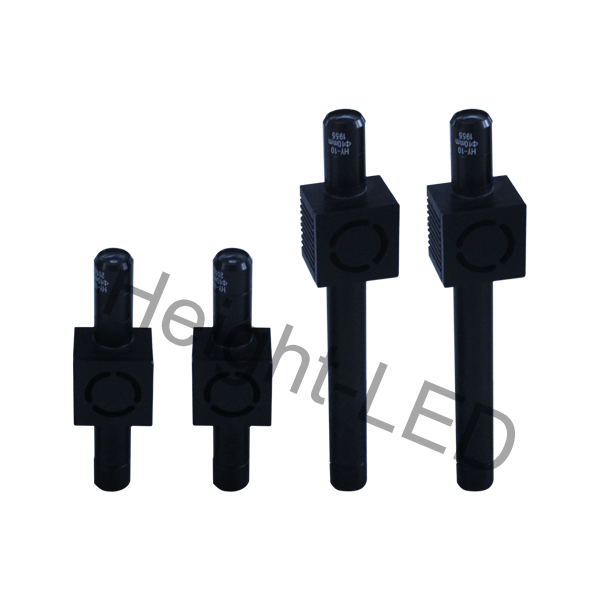

2.The system mainly contains the controller, UVLED irradiation head and connecting line.

3.UVLED irradiation head using imported high-intensity UV LED integration.

4.UV spectral wavelength of 365nm, 385nm, 395nm, 405nm optional.

5. Adopt forced air-cooled heat dissipation or self-cooling.

6. Support external signal input and trigger, can be equipped with semi-automatic or fully automatic production line.
