UVLED curing area system_UV printing lamp 300x30mm


The UV-LED curing system adopts the LED lighting method, and the LED with different wavelength of 365nm, 385nm, 395nm and 405nm wavelength can be used to cure different materials,such as UV glue, UV ink, UV varnish, UV paint.

Product SurveySpecification ParameterProduct Dimension Drawing

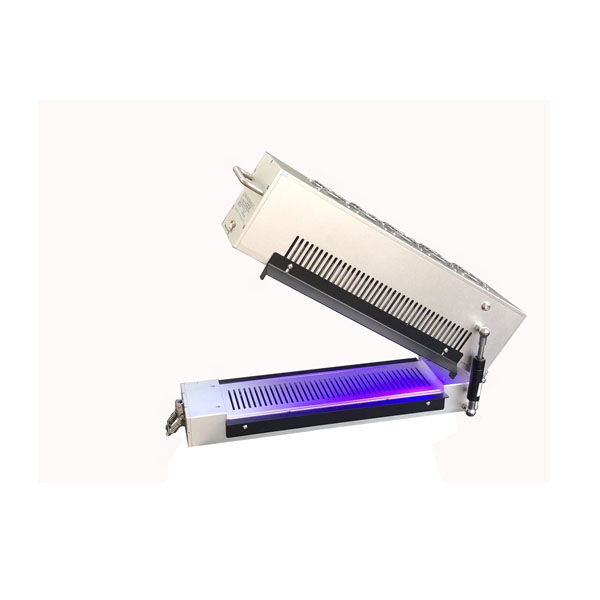

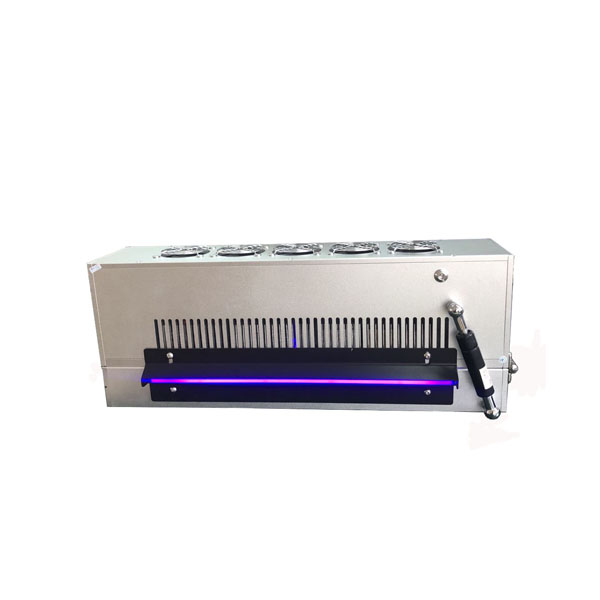

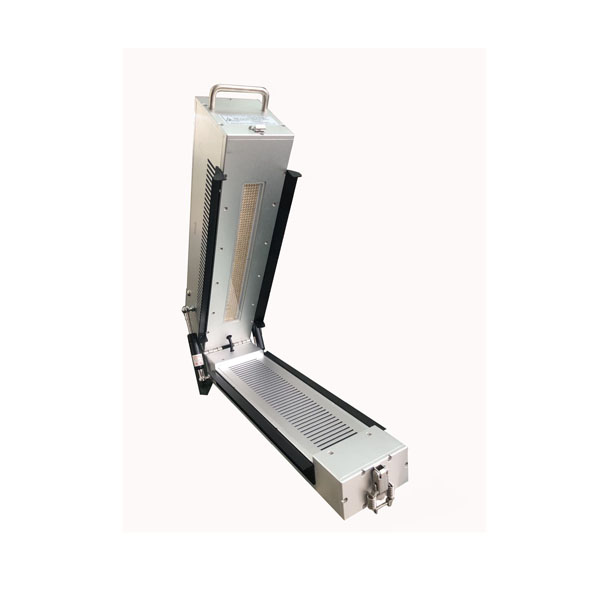

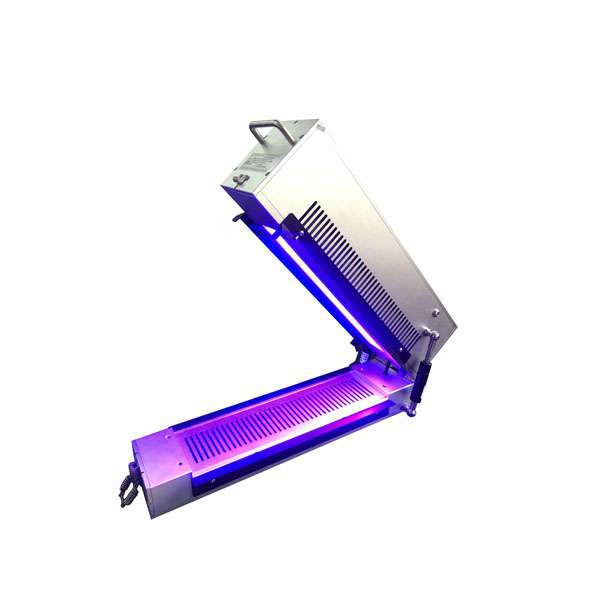

HTLD-S396-300x30-395 is a high-performance designed UV LED Curing system for UV LED ink. It mainly includes controller, UV LED head. UV LED head adopts imported high-intensity UV LED integrated, UV spectrum wavelength is 395nm, using air cooling, effective curing area is 300X30mm,supports external signal input and trigger, It can carry semi-automatic and fully automatic production line use.
